Principle of the Fiber Bragg Grating Weighing System:
The OFSCN® fiber Bragg grating weighing system (force measurement system) is an application of the Dacheng Yongsheng fiber Bragg grating strain sensor. By utilizing the wavelength change of the sensing element, FBG fiber Bragg grating in OFSCN® fiber Bragg grating strain sensor, corresponding to the weight and force, it can realize real-time online monitoring and recording of weight and force of the measured object.
System components of the fiber optic grating weighing system:
The OFSCN® fiber optic grating weighing system (force measurement system) consists of two parts: the fiber optic grating demodulator and the OFSCN® fiber optic grating weighing device. The fiber optic grating demodulator is mainly used for collecting and processing the wavelength signal of the fiber optic grating, while the OFSCN® fiber optic grating weighing device is mainly used for collecting weight and force information and importing it into the system.
Fiber optic grating weighing system parameters:
The parameters of the OFSCN® fiber optic grating weighing system (force measurement system) can be customized, including physical resolution, with reference values such as 0.2g, 5g, 50g, etc., and the measuring range can also be customized, with reference values such as 3500g, 55kg, 800kg, etc. Of course, these values can also be synchronously converted into force.
Customized product photo of fiber optic grating weighing system:
 |

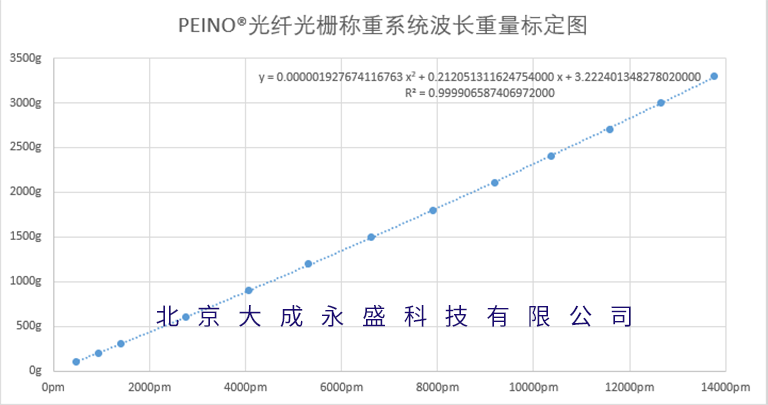

Calibration diagram of customized fiber optic grating weighing system product:
 |
Advantages of fiber optic grating weighing system:
Compared with traditional weighing systems, the OFSCN® fiber optic grating weighing system (force measurement system) uses the wavelength signal of the fiber optic grating as the sensing standard for weighing, measuring weight and force, so it has high sensitivity, customizable resolution and measuring range. With the fiber optic grating demodulator, it can easily achieve real-time online measurement of weight and force, and the measurement results are automatically recorded, completely digitalized, and can be unattended during the experimental or production process.
Compared with various electronic scales, the OFSCN® fiber optic grating weighing system (force measurement system) is based on fiber optic communication and fiber optic sensing, so it is not affected by electromagnetic interference and can work in various strong and weak electromagnetic environments.
The OFSCN® fiber optic grating weighing system (force measurement system) is a digital, recordable, and networkable sensor. The fiber optic grating weighing system (force measurement system) composed of it can monitor weight (force) information for large spaces, long distances, and multiple targets, with a wide coverage area.
